Traefik

With K8S + CRD (Custom Resource Definitions)

  • IngressRoute Definition

    # Install Traefik Resource Definitions:
kubectl apply -f https://raw.githubusercontent.com/traefik/traefik/v2.10/docs/content/reference/dynamic-configuration/kubernetes-crd-definition-v1.yml

# Install RBAC for Traefik:
kubectl apply -f https://raw.githubusercontent.com/traefik/traefik/v2.10/docs/content/reference/dynamic-configuration/kubernetes-crd-rbac.yml

  • Services

    kubectl apply -f https://raw.githubusercontent.com/traefik/traefik/v2.10/docs/content/user-guides/crd-acme/02-services.yml

  • 修改 traefik

    apiVersion: v1 kind: Service metadata: name: traefik spec: type: LoadBalancer # 多加這一行，暴露街口 ports: - protocol: TCP name: web # web 入口 port: 8000 - protocol: TCP name: admin # dashboard 入口 port: 8080 - protocol: TCP name: websecure # web https 入口 port: 4443 selector: app: traefik - Deployments

    kubectl apply -f https://raw.githubusercontent.com/traefik/traefik/v2.10/docs/content/user-guides/crd-acme/03-deployments.yml

  • Traefik Routers ``` apiVersion: traefik.io/v1alpha1 kind: IngressRoute metadata: name: simpleingressroute namespace: default spec: entryPoints: - web routes:

    • match: Host(192.168.0.17) && PathPrefix(/notls) kind: Rule services:
      • name: whoami port: 80 ```

    apiVersion: traefik.io/v1alpha1 kind: IngressRoute metadata: name: docker-demo namespace: default spec: entryPoints: - web routes: - match: PathPrefix(`/docker-demo`) kind: Rule services: - name: myapp port: 80

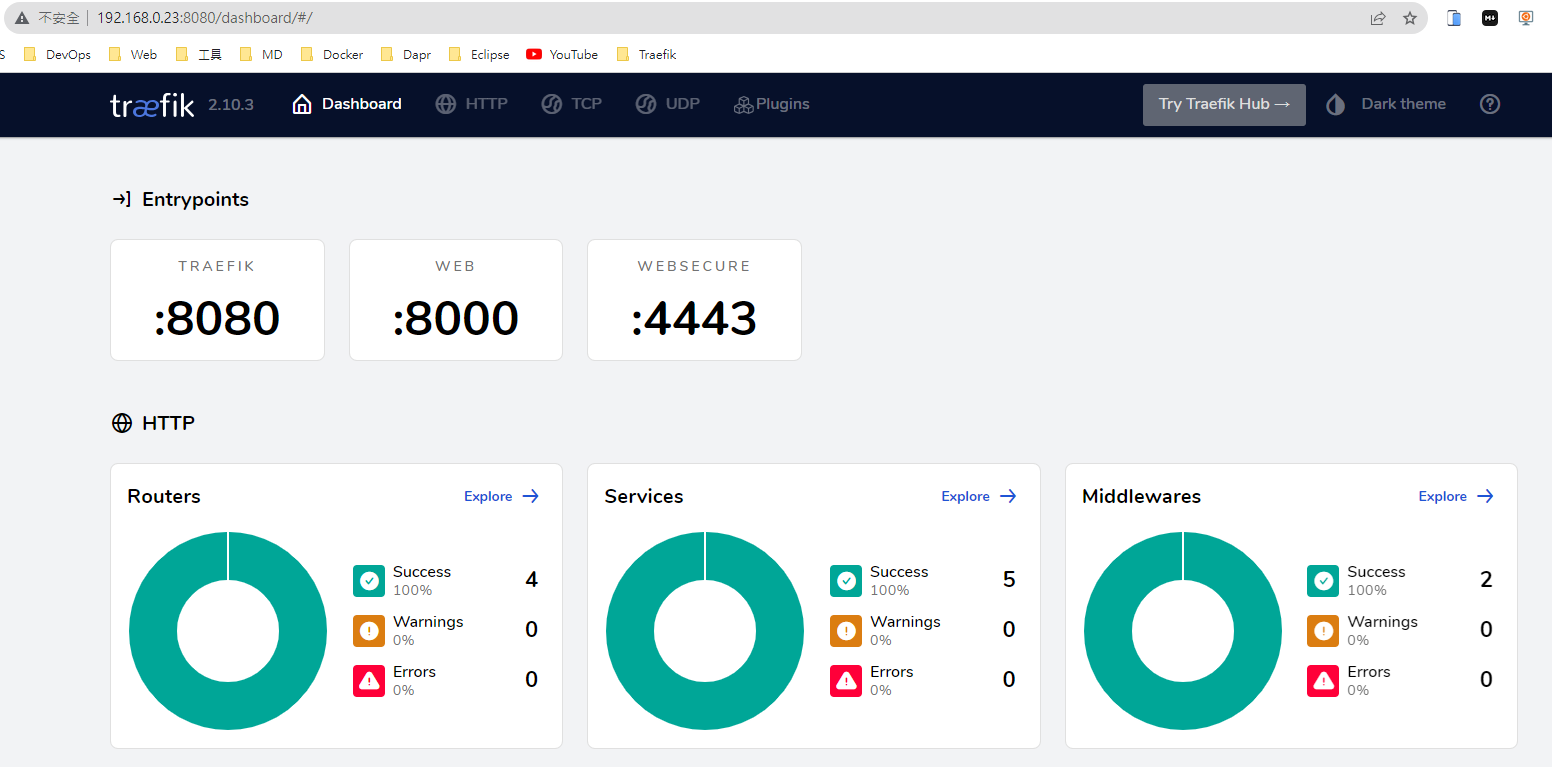

  • Dashboard

http://192.168.0.23:8080/dashboard/#/

Alt text

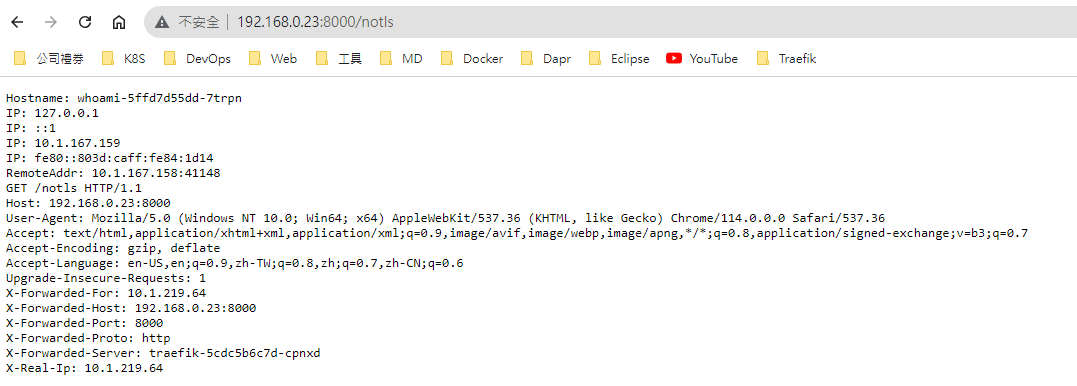

  • 測試 URL： http://192.168.0.23:8000/notls

Alt text

  • Middlewares

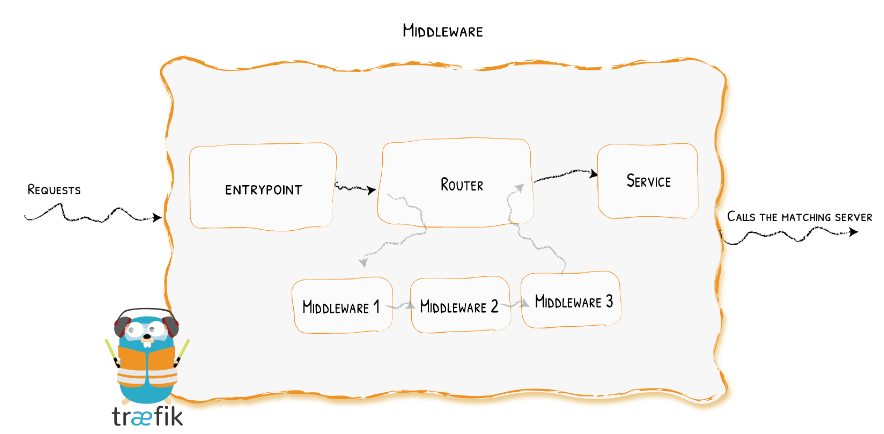

  • 概念

Alt text

  • 修改 IngressRoute apiVersion: traefik.io/v1alpha1 kind: IngressRoute metadata: name: simpleingressroute namespace: default spec: entryPoints: - web routes: - match: Host(`192.168.0.23`) && PathPrefix(`/notls`) kind: Rule middlewares: - name: test-auth services: - name: whoami port: 80

  • 建立 Middleware ``` apiVersion: traefik.io/v1alpha1 kind: Middleware metadata: name: test-auth spec: basicAuth: secret: authsecret

    Note: in a kubernetes secret the string (e.g. generated by htpasswd) must be base64-encoded first.

    To create an encoded user:password pair, the following command can be used:

    htpasswd -nb user password | openssl base64

    apiVersion: v1 kind: Secret metadata: name: authsecret namespace: default data: users: dXNlcjokYXByMSRicC5FV295eCRXTWttUktBLzdjQWcycXNIL09XbXIxCgo=

    ```

    htpasswd -nb user password | openssl base64

    Alt text

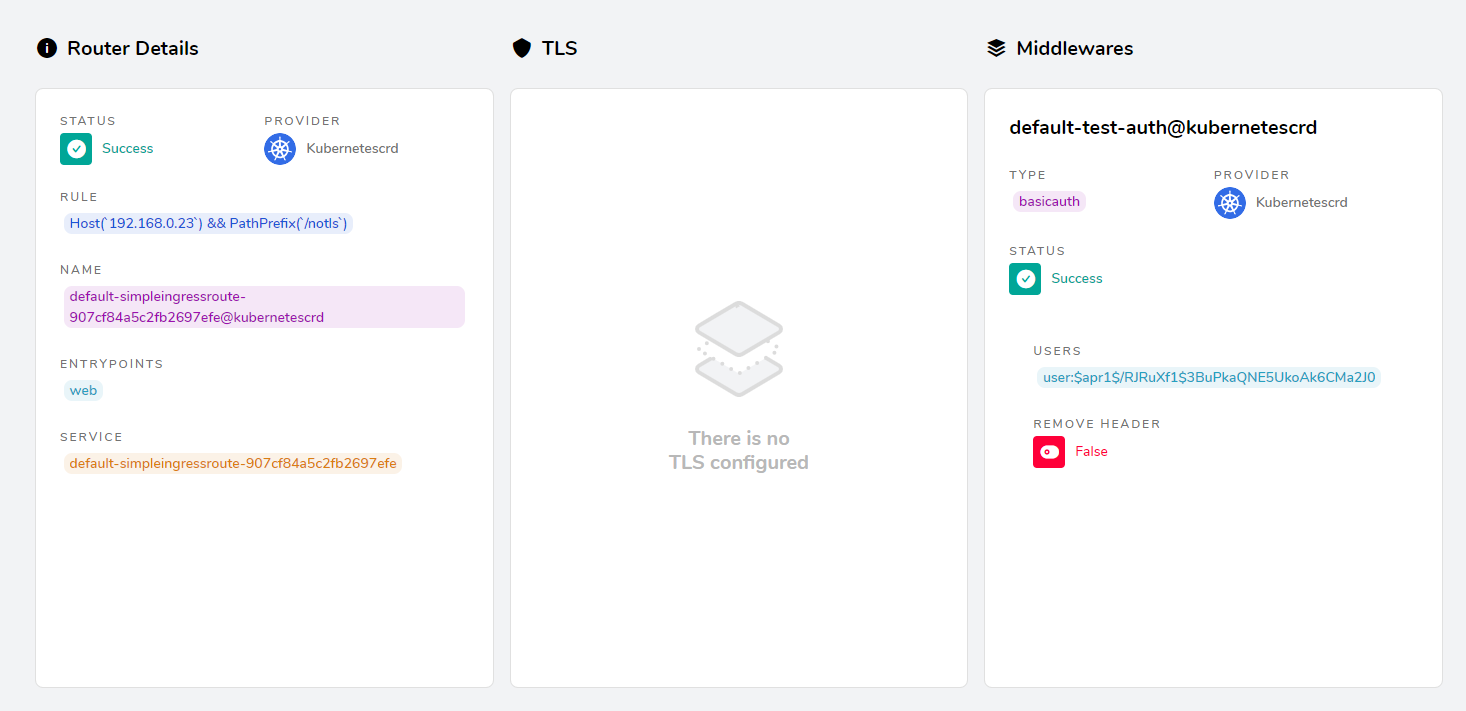

    去看 Traefik Dashboard，會看到多一個 Middlewares

    Alt text

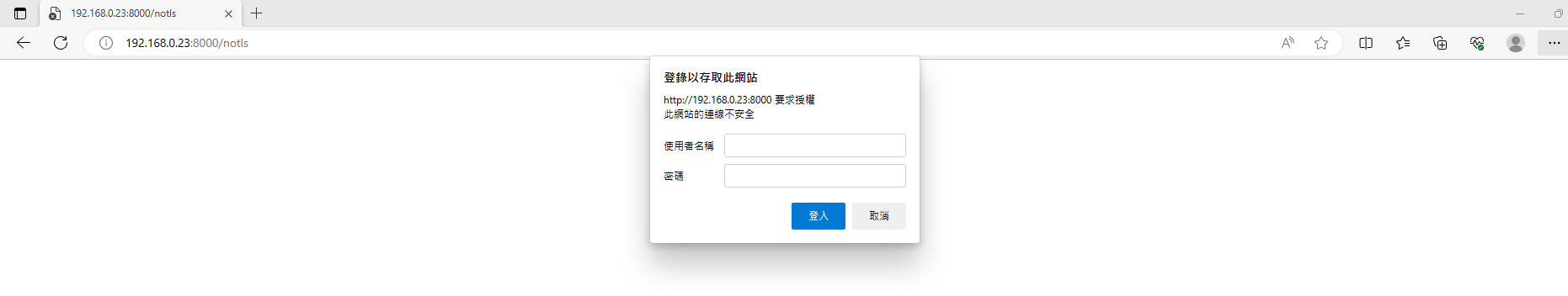

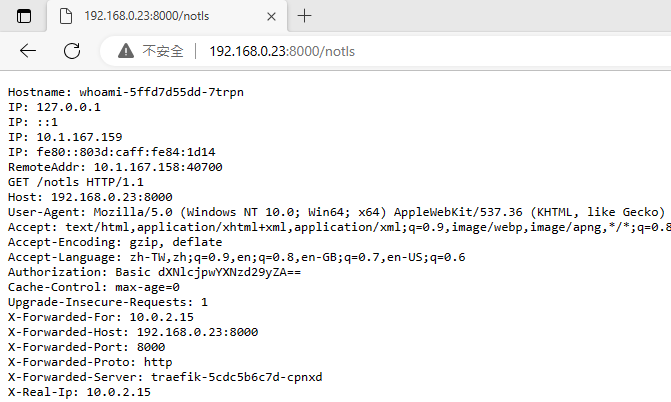

    打開瀏覽器，輸入 http://192.168.0.23:8000/notls

    Alt text

    輸入：user/password 後，就可以登入成功，並取得資訊

    Alt text

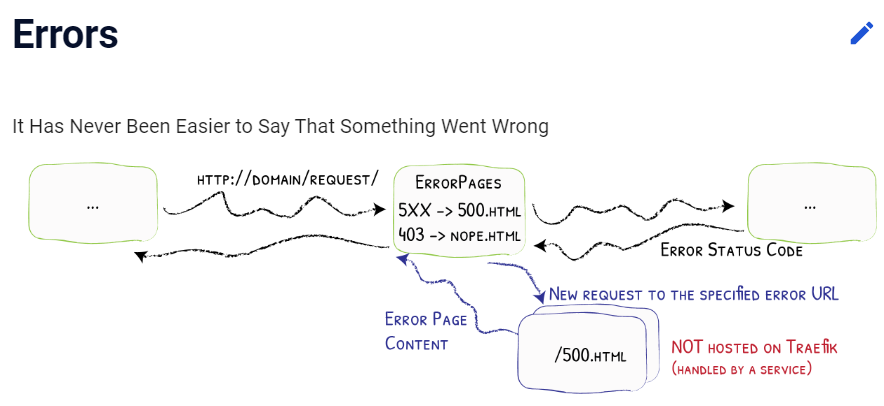

Middleware - Error

Alt text

建立一個 Service

apiVersion: v1
kind: Service
metadata:
  name: traefikerror
spec:
  type: LoadBalancer
  ports:
  - name: http
    targetPort: 80
    port: 80
  selector:
    app: traefikerror
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: traefikerror
spec:
  replicas: 1
  selector:
    matchLabels:
      app: traefikerror
  template:
    metadata:
      labels:
        app: traefikerror
    spec:
      containers:
      - name: traefikerror
        image: guillaumebriday/traefik-custom-error-pages
        ports:
        - containerPort: 80

建立 Middleware

apiVersion: traefik.io/v1alpha1
kind: Middleware
metadata:
  name: test-errors
spec:
  errors:
    status:
      - "400-599"
    query: /{status}.html
    service:
      name: traefikerror
      port: 80

加入 Middleware

apiVersion: traefik.io/v1alpha1
kind: IngressRoute
metadata:
  name: simpleingressroute
  namespace: default
spec:
  entryPoints:
    - web
  routes:
    - match: Host(`192.168.0.23`) && PathPrefix(`/notls`)
      kind: Rule
      middlewares:
        - name: test-auth
        - name: test-errors
      services:
        - name: whoami
          port: 80

暴露 HTTPS 服務

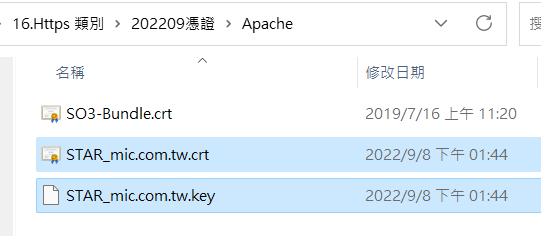

先把 STAR_mic.com.tw.crt 和 STAR_mic.com.tw.key 兩個檔案放到執行目錄下

![Alt text](image-15.png)

執行指令

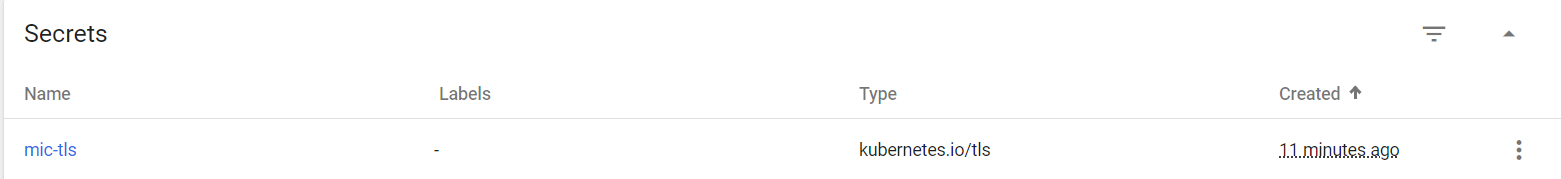

kubectl create secret tls mic-tls --cert=STAR_mic.com.tw.crt --key=STAR_mic.com.tw.key

Alt text

Alt text

在 IngressRoute 中加入

apiVersion: traefik.io/v1alpha1
kind: IngressRoute
metadata:
  name: ingressroutetls
  namespace: default
spec:
  entryPoints:
    - websecure
  routes:
    - kind: Rule
      match: Host(`localhost.mic.com.tw`) && PathPrefix(`/tls`)
      services:
        - name: whoami
          port: 80
  tls:
    secretName: mic-tls

ps: 在本機的hosts檔俺中加入 192.168.0.23 localhost.mic.com.tw (192.168.0.2 是存取 Traefik 的暴露IP)

https://localhost.mic.com.tw/tls

Alt text

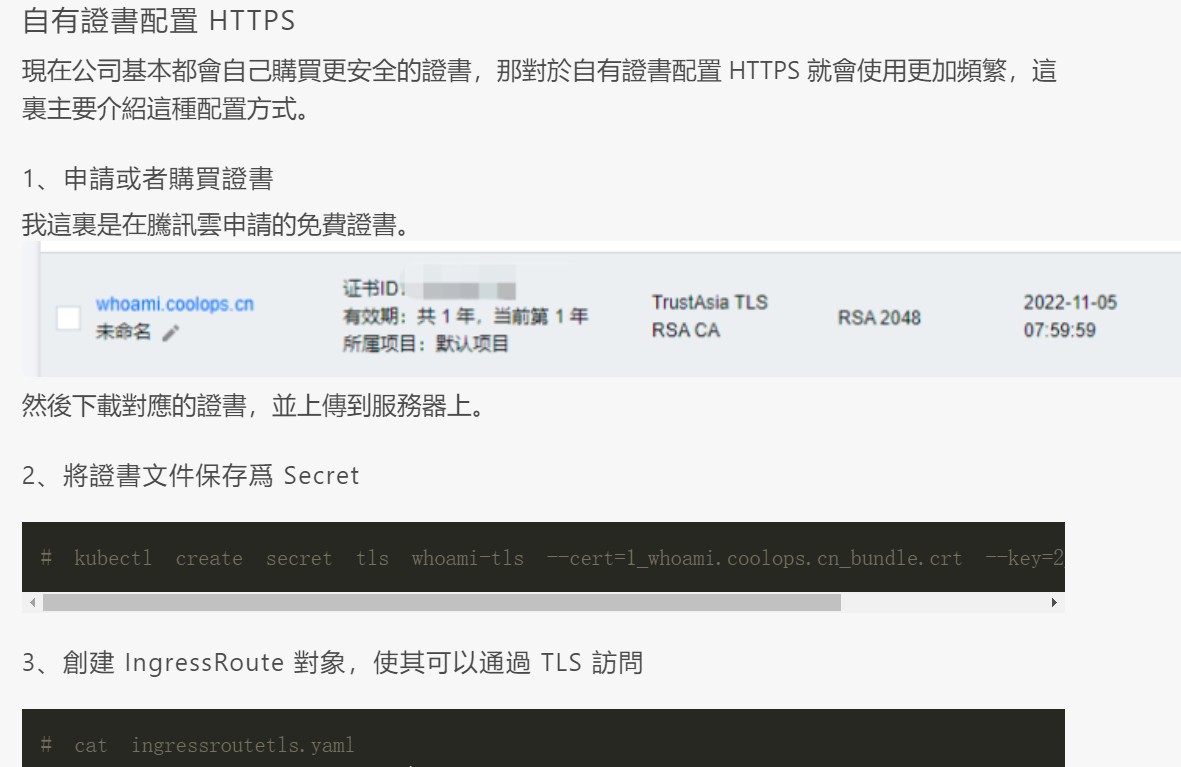

參考網頁：https://www.readfog.com/a/1665375657830486016
