Struts2 + Apache Tiles

Struts2 + Apache Tiles + MDB

UI 框架

1. MDB: https://mdbootstrap.com/

2. Tiles: https://www.viralpatel.net/struts-2-tiles-plugin-tutorial-with-example-in-eclipse/

Alt text

範例

Github 程式碼：

https://github.com/aweit-zhu/Struts2Beginner

pom.xml

<!-- Tiles2 -->
<dependency>
    <groupId>org.apache.struts</groupId>
    <artifactId>struts2-tiles-plugin</artifactId>
    <version>2.3.8</version>
</dependency>

web.xml

<!-- Tiles2 -->
<listener>
    <listener-class>org.apache.struts2.tiles.StrutsTilesListener</listener-class>
</listener>
<context-param>
    <param-name>tilesDefinitions</param-name>
    <param-value>/WEB-INF/tiles.xml</param-value>
</context-param>

tiles.xml

<!DOCTYPE tiles-definitions PUBLIC
    "-//Apache Software Foundation//DTD Tiles Configuration 2.0//EN"
    "http://tiles.apache.org/dtds/tiles-config_2_0.dtd">

<tiles-definitions>
    <definition name="baseLayout" template="/WEB-INF/layouts/baseLayout.jsp">
        <put-attribute name="title" value="My Application" />
        <put-attribute name="header" value="/WEB-INF/layouts/header.jsp" />
        <put-attribute name="body" value="" />
        <put-attribute name="footer" value="/WEB-INF/layouts/footer.jsp" />
    </definition>
</tiles-definitions>

baseLayout.jsp

<%@ taglib prefix="tiles" uri="http://tiles.apache.org/tags-tiles"%>
<!DOCTYPE html>
<html>
<head>
    <title><tiles:getAsString name="title" /></title>
    <!-- Font Awesome -->
    <link href="https://cdnjs.cloudflare.com/ajax/libs/font-awesome/6.0.0/css/all.min.css" rel="stylesheet" />
    <!-- Google Fonts -->
    <link href="https://fonts.googleapis.com/css?family=Roboto:300,400,500,700&display=swap" rel="stylesheet" />
    <!-- MDB -->
    <link href="${pageContext.request.contextPath}/css/mdb.min.css" rel="stylesheet" />
    <!-- MDB -->
    <script type="text/javascript" src="${pageContext.request.contextPath}/js/mdb.min.js"></script>
</head>
<body>
    <header>
        <tiles:insertAttribute name="header" />
    </header>

    <main>
        <tiles:insertAttribute name="body" />
    </main>

    <footer>
        <tiles:insertAttribute name="footer" />
    </footer>
</body>
</html>

header.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>

<header>
    <!-- Navbar -->
    <nav class="navbar navbar-expand-lg navbar-light bg-white fixed-top">
        <div class="container-fluid">
            <button class="navbar-toggler" type="button"
                data-mdb-toggle="collapse" data-mdb-target="#navbarExample01"
                aria-controls="navbarExample01" aria-expanded="false"
                aria-label="Toggle navigation">
                <i class="fas fa-bars"></i>
            </button>
            <div class="collapse navbar-collapse" id="navbarExample01">
                <ul class="navbar-nav me-auto mb-2 mb-lg-0">
                    <li class="nav-item active"><a class="nav-link" aria-current="page" href="${pageContext.request.contextPath}/hello">Home</a></li>
                    <li class="nav-item"><a class="nav-link" href="${pageContext.request.contextPath}/admin/index">Caculate</a></li>
                    <li class="nav-item"><a class="nav-link" href="#">Pricing</a></li>
                    <li class="nav-item"><a class="nav-link" href="#">About</a></li>
                </ul>
            </div>
        </div>
    </nav>
</header>

footer.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>

<!-- Footer -->
<footer class="text-center text-lg-start bg-light text-muted">
    <!-- Section: Social media -->
    <section
        class="d-flex justify-content-center justify-content-lg-between p-4 border-bottom">
        <!-- Left -->
        <div class="me-5 d-none d-lg-block">
            <span>Get connected with us on social networks:</span>
        </div>
        <!-- Left -->

        <!-- Right -->
        <div>
            <a href="" class="me-4 text-reset"> <i class="fab fa-facebook-f"></i>
            </a> <a href="" class="me-4 text-reset"> <i class="fab fa-twitter"></i>
            </a> <a href="" class="me-4 text-reset"> <i class="fab fa-google"></i>
            </a> <a href="" class="me-4 text-reset"> <i class="fab fa-instagram"></i>
            </a> <a href="" class="me-4 text-reset"> <i class="fab fa-linkedin"></i>
            </a> <a href="" class="me-4 text-reset"> <i class="fab fa-github"></i>
            </a>
        </div>
        <!-- Right -->
    </section>
    <!-- Section: Social media -->

    <!-- Section: Links  -->
    <section class="">
        <div class="container text-center text-md-start mt-5">
            <!-- Grid row -->
            <div class="row mt-3">
                <!-- Grid column -->
                <div class="col-md-3 col-lg-4 col-xl-3 mx-auto mb-4">
                    <!-- Content -->
                    <h6 class="text-uppercase fw-bold mb-4">
                        <i class="fas fa-gem me-3"></i>Company name
                    </h6>
                    <p>Here you can use rows and columns to organize your footer
                        content. Lorem ipsum dolor sit amet, consectetur adipisicing elit.
                    </p>
                </div>
                <!-- Grid column -->

                <!-- Grid column -->
                <div class="col-md-2 col-lg-2 col-xl-2 mx-auto mb-4">
                    <!-- Links -->
                    <h6 class="text-uppercase fw-bold mb-4">Products</h6>
                    <p>
                        <a href="#!" class="text-reset">Angular</a>
                    </p>
                    <p>
                        <a href="#!" class="text-reset">React</a>
                    </p>
                    <p>
                        <a href="#!" class="text-reset">Vue</a>
                    </p>
                    <p>
                        <a href="#!" class="text-reset">Laravel</a>
                    </p>
                </div>
                <!-- Grid column -->

                <!-- Grid column -->
                <div class="col-md-3 col-lg-2 col-xl-2 mx-auto mb-4">
                    <!-- Links -->
                    <h6 class="text-uppercase fw-bold mb-4">Useful links</h6>
                    <p>
                        <a href="#!" class="text-reset">Pricing</a>
                    </p>
                    <p>
                        <a href="#!" class="text-reset">Settings</a>
                    </p>
                    <p>
                        <a href="#!" class="text-reset">Orders</a>
                    </p>
                    <p>
                        <a href="#!" class="text-reset">Help</a>
                    </p>
                </div>
                <!-- Grid column -->

                <!-- Grid column -->
                <div class="col-md-4 col-lg-3 col-xl-3 mx-auto mb-md-0 mb-4">
                    <!-- Links -->
                    <h6 class="text-uppercase fw-bold mb-4">Contact</h6>
                    <p>
                        <i class="fas fa-home me-3"></i> New York, NY 10012, US
                    </p>
                    <p>
                        <i class="fas fa-envelope me-3"></i> info@example.com
                    </p>
                    <p>
                        <i class="fas fa-phone me-3"></i> + 01 234 567 88
                    </p>
                    <p>
                        <i class="fas fa-print me-3"></i> + 01 234 567 89
                    </p>
                </div>
                <!-- Grid column -->
            </div>
            <!-- Grid row -->
        </div>
    </section>
    <!-- Section: Links  -->

    <!-- Copyright -->
    <div class="text-center p-4"
        style="background-color: rgba(0, 0, 0, 0.05);">
        © 2021 Copyright: <a class="text-reset fw-bold"
            href="https://mdbootstrap.com/">MDBootstrap.com</a>
    </div>
    <!-- Copyright -->
</footer>
<!-- Footer -->

Dynamic Body

<%@taglib prefix="tiles" uri="http://tiles.apache.org/tags-tiles"%>
<%@ taglib prefix="s" uri="/struts-tags"%>
<tiles:insertDefinition name="baseLayout">
    <tiles:putAttribute name="body">
        <div class="p-5 text-center bg-light" style="margin-top: 58px;">
            <center>
                <h2>Calculate sum of two numbers</h2>
                <s:form action="/admin/calculateSumAction" method="post">
                    <s:textfield name="x" size="10" label="Enter X" />
                    <s:textfield name="y" size="10" label="Enter Y" />
                    <s:submit value="Calculate" />
                </s:form>
            </center>
        </div>
    </tiles:putAttribute>
</tiles:insertDefinition>

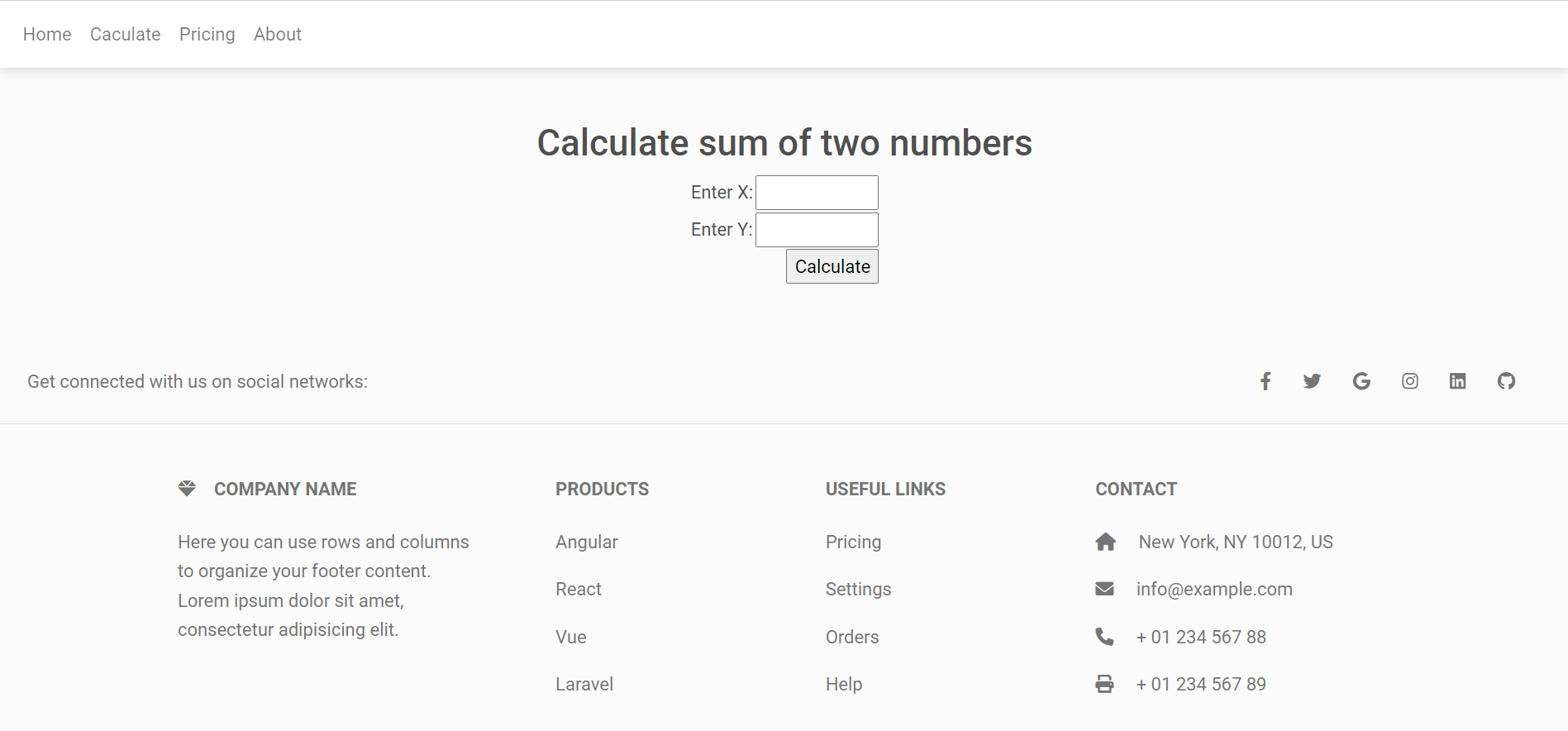

Test

http://localhost:8080/Struts2Beginner/admin/index

Alt text
