Spring Boot 3 + Spring Batch 5

Spring Boot 3 + Spring Batch 5

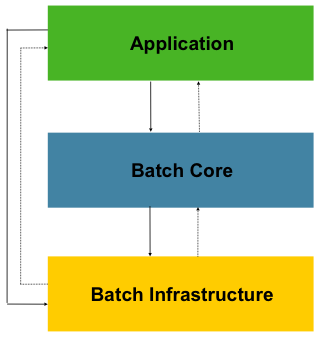

overview

Alt text

圖片複製於：https://docs.spring.io/spring-batch/docs/current/reference/html/index-single.html#business-scenarios

  1. Batch: A batch refers to a collection of related tasks or operations that are executed together. It typically involves processing a large amount of data in a systematic and efficient manner.

  2. Job: In Spring Batch, a job represents a single batch processing unit. It consists of one or more steps that are executed sequentially. A job encapsulates the entire batch processing logic and provides a way to manage and monitor the execution of the batch.

  3. Step: A step is a single unit of work within a job. It represents a specific task or operation that needs to be performed during the batch processing. Each step typically consists of an ItemReader, ItemProcessor, and ItemWriter component, which collectively handle the input, processing, and output of data for that step.

  4. ItemReader: An ItemReader is responsible for reading data from a data source. It provides a way to retrieve data in chunks or one item at a time. The ItemReader interface defines the read() method, which returns the next item from the data source or null if there is no more data.

  5. ItemWriter: An ItemWriter is responsible for writing the processed data to a desired destination, such as a database, file, or API. It receives data in chunks or one item at a time from the ItemProcessor and performs the necessary actions to persist or transmit the data.

  6. ItemProcessor: An ItemProcessor is an optional component that performs any necessary processing on the input data before it is written by the ItemWriter. It allows you to transform or filter the data based on your business logic. The ItemProcessor interface defines the process() method, which takes an input item and returns a processed item or null to indicate that the item should be skipped.

  7. JobLauncher: The JobLauncher is responsible for starting the execution of a job. It receives a job instance and launches it, triggering the execution of all the steps within the job. The JobLauncher interface defines the run() method, which takes a job instance and returns a JobExecution object representing the status and result of the job execution.

Demo

情境說明
有一個 CSV 檔案，內容記錄著人員的姓名與電子信箱，需要將資料同步到自己的 MySQL DB中。

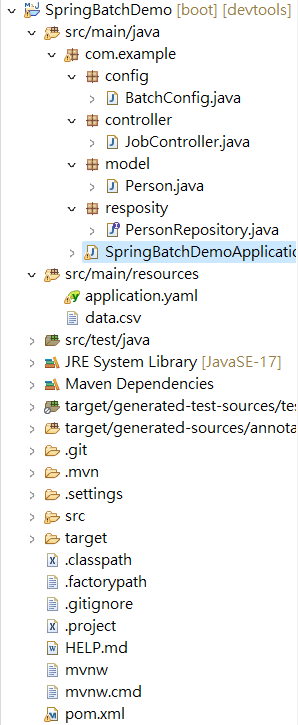

Project Structure

完整代碼 https://github.com/aweit-zhu/SpringBatchDemo

Alt text

docker-compose.yml
services:
  mysql:
    image: mysql:5
    container_name: mysql
    restart: always
    environment:
      MYSQL_ROOT_PASSWORD: password
      MYSQL_DATABASE: cookbook
      MYSQL_USER: admin
      MYSQL_PASSWORD: password
    ports:
      - 3306:3306
    volumes:
      - ./data:/var/lib/mysql

  phpmyadmin:
    image: phpmyadmin/phpmyadmin
    container_name: phpmyadmin
    restart: always
    environment:
      PMA_HOST: mysql
      PMA_PORT: 3306
      MYSQL_ROOT_PASSWORD: password
    ports:
      - 8989:80
    depends_on:
      - mysql
pom.xml
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>3.1.3</version>
        <relativePath /> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.example</groupId>
    <artifactId>spring-batch-demo</artifactId>
    <version>1.0.0</version>
    <name>SpringBatchDemo</name>
    <description>spring-batch-demo</description>
    <properties>
        <java.version>17</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-batch</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>com.mysql</groupId>
            <artifactId>mysql-connector-j</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.batch</groupId>
            <artifactId>spring-batch-test</artifactId>
            <scope>test</scope>
        </dependency>
        <!-- Other dependencies -->
        <dependency>
            <groupId>com.fasterxml.jackson.datatype</groupId>
            <artifactId>jackson-datatype-joda</artifactId>
            <version>2.9.4</version>
        </dependency>
        <dependency>
            <groupId>org.jadira.usertype</groupId>
            <artifactId>usertype.core</artifactId>
            <version>6.0.1.GA</version>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <excludes>
                        <exclude>
                            <groupId>org.projectlombok</groupId>
                            <artifactId>lombok</artifactId>
                        </exclude>
                    </excludes>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>
建立 data.csv 於 src/main/resources 資料夾中
name,email
Aweit,aweit@example.com
application.yaml
spring:
  batch:
    jdbc:
      initialize-schema: always
    job:
      enabled: false
  datasource:
    url: jdbc:mysql://localhost:3306/spring-batch
    username: admin
    password: password
    driver-class-name: com.mysql.cj.jdbc.Driver
  jpa:
    hibernate:
      ddl-auto: update
    show-sql: false
    properties:
      hibernate:
        format_sql: true
    database-platform: org.hibernate.dialect.MySQL8Dialect
建立 Model
@Data
@AllArgsConstructor
@NoArgsConstructor
@ToString
@Builder
@Entity
@Table
public class Person {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private long id;

    @Column
    private String name;

    @Column
    private String email;

}
建立 Reposity
public interface PersonRepository extends JpaRepository<Person, Long>{

}
建立 Batch Config
package com.example.config;

import javax.sql.DataSource;

import org.springframework.batch.core.Job;
import org.springframework.batch.core.Step;
import org.springframework.batch.core.job.builder.JobBuilder;
import org.springframework.batch.core.launch.support.RunIdIncrementer;
import org.springframework.batch.core.repository.JobRepository;
import org.springframework.batch.core.step.builder.StepBuilder;
import org.springframework.batch.item.ItemProcessor;
import org.springframework.batch.item.ItemReader;
import org.springframework.batch.item.ItemWriter;
import org.springframework.batch.item.data.RepositoryItemWriter;
import org.springframework.batch.item.file.FlatFileItemReader;
import org.springframework.batch.item.file.mapping.BeanWrapperFieldSetMapper;
import org.springframework.batch.item.file.mapping.DefaultLineMapper;
import org.springframework.batch.item.file.transform.DelimitedLineTokenizer;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.io.ClassPathResource;
import org.springframework.transaction.PlatformTransactionManager;

import com.example.model.Person;
import com.example.resposity.PersonRepository;

@Configuration
public class BatchConfig {

    @Autowired
    PersonRepository personRepository;

    @Bean
    public ItemReader<Person> csvReader() {
        FlatFileItemReader<Person> reader = new FlatFileItemReader<>();
        reader.setResource(new ClassPathResource("data.csv"));
        reader.setLinesToSkip(1);
        reader.setLineMapper(new DefaultLineMapper<Person>() {
            {
                setLineTokenizer(new DelimitedLineTokenizer() {
                    {
                        setNames("name", "email");
                    }
                });
                setFieldSetMapper(new BeanWrapperFieldSetMapper<Person>() {
                    {
                        setTargetType(Person.class);
                    }
                });
            }
        });
        return reader;
    }

    @Bean
    public ItemProcessor<Person, Person> personProcessor() {
        return person -> {
            person.setName(person.getName().toUpperCase());
            return person;
        };
    }

    @Bean
    public ItemWriter<Person> dbWriter(DataSource dataSource) {
        RepositoryItemWriter<Person> writer = new RepositoryItemWriter<>();
        writer.setRepository(personRepository);
        writer.setMethodName("save");
        return writer;
    }

    @Bean
    public Step step(ItemReader<Person> reader, ItemProcessor<Person, Person> processor, ItemWriter<Person> writer,
            JobRepository jobRepository, PlatformTransactionManager transactionManager) {
        return new StepBuilder("myStep", jobRepository)
                .<Person, Person>chunk(10, transactionManager)
                .reader(reader)
                .processor(processor)
                .writer(writer)
                .build();
    }

    @Bean
    public Job job(Step step, JobRepository jobRepository) {
        return new JobBuilder("myJob", jobRepository)
                .incrementer(new RunIdIncrementer())
                .flow(step)
                .end()
                .build();
    }

}
建立 Controller
@RestController
@RequestMapping("/jobs")
public class JobController {

    @Autowired
    private JobLauncher jobLauncher;

    @Autowired
    private Job job;

    @GetMapping("/import")
    public void importCsvToDBJob() {
        JobParameters jobParameters = new JobParametersBuilder()
                .addLong("startAt", System.currentTimeMillis()).toJobParameters();
        try {
            jobLauncher.run(job, jobParameters);
        } catch (JobExecutionAlreadyRunningException | JobRestartException | JobInstanceAlreadyCompleteException | JobParametersInvalidException e) {
            e.printStackTrace();
        }
    }
}

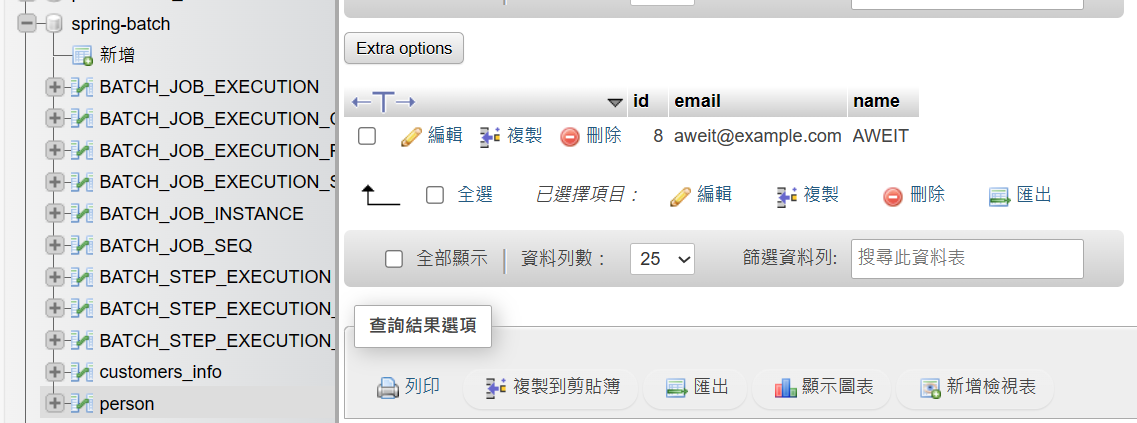

測試：http://localhost:8080/jobs/import

Alt text

Spring Batch + SFTP Server

情境

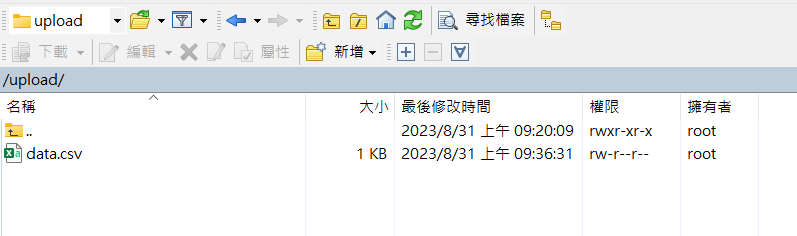

  1. 本來是讀取 ClassPath Resources 的檔案，現在要改為讀取 SFTP Server 上的 /upload 資料夾，作為檔案來源。

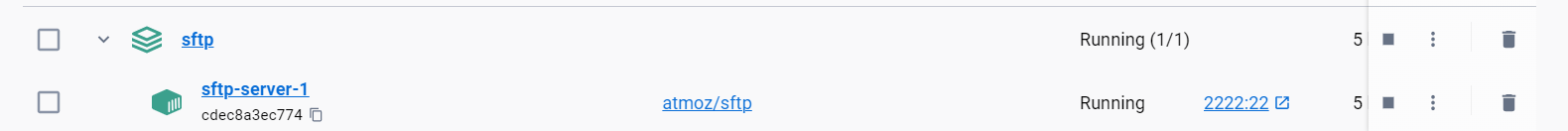

docker-compose.ayml
services:
  sftp-server:
    image: atmoz/sftp
    volumes:
      - ./sftp:/home/user/upload
    ports:
      - "172.22.103.117:2222:22"
    environment:
      - SFTP_USERS=user:password:1001
pom.xml
  <!--SFTP-->
  <dependency>
    <groupId>com.jcraft</groupId>
    <artifactId>jsch</artifactId>
    <version>0.1.55</version>
  </dependency>
appication.yaml
sftp:
  host: 172.22.103.117
  port: 2222
  username: user
  password: password
SftpUtil.java
package com.example.util;

import java.io.IOException;
import java.io.InputStream;
import java.util.ArrayList;
import java.util.List;

import org.springframework.core.io.InputStreamResource;
import org.springframework.core.io.Resource;

import com.jcraft.jsch.ChannelSftp;
import com.jcraft.jsch.JSch;
import com.jcraft.jsch.JSchException;
import com.jcraft.jsch.Session;
import com.jcraft.jsch.SftpException;

public class SftpUtil {

    public static Resource[] getResources(ChannelSftp channelSftp, String remoteFolderPath) throws IOException {
        List<Resource> resourceList = new ArrayList<>();
        try {
            channelSftp.cd(remoteFolderPath);
            @SuppressWarnings("unchecked")
            List<ChannelSftp.LsEntry> lsEntries = channelSftp.ls(".");
            for (ChannelSftp.LsEntry entry : lsEntries) {
                if (!entry.getAttrs().isDir()) {
                    InputStream inputStream = channelSftp.get(entry.getFilename());
                    Resource resource = new InputStreamResource(inputStream);
                    resourceList.add(resource);
                }
            }
        } catch (SftpException e) {
            throw new IOException("Failed to retrieve resources from the SFTP server", e);
        }
        return resourceList.toArray(new Resource[0]);
    }

}
SftpCOnfig.java
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import com.jcraft.jsch.ChannelSftp;
import com.jcraft.jsch.JSch;
import com.jcraft.jsch.JSchException;
import com.jcraft.jsch.Session;

@Configuration
public class SftpConfig {

    @Value("${sftp.host}")
    private String sftpHost;

    @Value("${sftp.port}")
    private int sftpPort;

    @Value("${sftp.username}")
    private String sftpUsername;

    @Value("${sftp.password}")
    private String sftpPassword;


    @Bean
    public ChannelSftp channelSftp() throws JSchException {
        JSch jsch = new JSch();
        Session session = jsch.getSession(sftpUsername, sftpHost, sftpPort);
        session.setPassword(sftpPassword);
        session.setConfig("StrictHostKeyChecking", "no");
        session.connect();

        ChannelSftp channel = (ChannelSftp) session.openChannel("sftp");
        channel.connect();
        return channel;
    }

}
BatchConfig
@Configuration
public class BatchConfig {

  ...

  @Autowired
    ChannelSftp channelSftp;

  @Bean
  public ItemReader<Person> csvReader() throws JSchException, IOException, SftpException{

      Resource[] resources = SftpUtil.getResources(channelSftp, "/upload");

      FlatFileItemReader<Person> fReader = new FlatFileItemReader<>();
      fReader.setLinesToSkip(1);
      fReader.setLineMapper(new DefaultLineMapper<Person>() {
        {
          setLineTokenizer(new DelimitedLineTokenizer() {
            {
              setNames("name", "email");
            }
          });
          setFieldSetMapper(new BeanWrapperFieldSetMapper<Person>() {
            {
              setTargetType(Person.class);
            }
          });
        }
      });

      MultiResourceItemReader<Person> reader = new MultiResourceItemReader<>();
      reader.setResources(resources);
      reader.setDelegate(fReader);

      return reader;
    }
  }

  ...
Test

Docker 啟動的 SFTP Alt text

SFTP 上傳的檔案 Alt text

DB資料 Alt text
